Product Overview

Designed specifically for the 2005–2006MY Ford GT, the GT101 replacement aluminium fuel filler flap and bracket kit provides a durable, precision-engineered solution to a known weakness within the original fuel filler neck assembly.

The factory Ford GT fuel filler mechanism incorporates plastic internal components which can become brittle, deteriorate or break with age. Failure of the original fuel filler flap or its supporting bracket can compromise the operation of the filler neck mechanism, presenting a challenging repair where original replacement components are difficult to source.

These direct replacement aluminium components have been manufactured using advanced metal 3D printing technology to replace the original plastic flap and supporting bracket, providing a stronger, more durable alternative to the factory parts.

Designed to integrate with the existing fuel filler neck assembly, the replacement components allow owners and specialists to repair the original mechanism while retaining the surrounding factory hardware.

This kit is particularly suited to Ford GT owners looking to preserve the original fuel filler assembly rather than attempt to replace the complete unit.

Key Features

• Direct replacement fitment for 2005–2006MY Ford GT fuel filler neck assemblies.
• Metal 3D printed aluminium construction replaces the original failure-prone plastic components.
• Improved component durability compared with the original plastic flap and bracket.
• Preserves the original fuel filler assembly by allowing the existing mechanism to be repaired rather than replaced in its entirety.
• Designed for factory compatibility using the original rubber seal, spring and pivot pin.

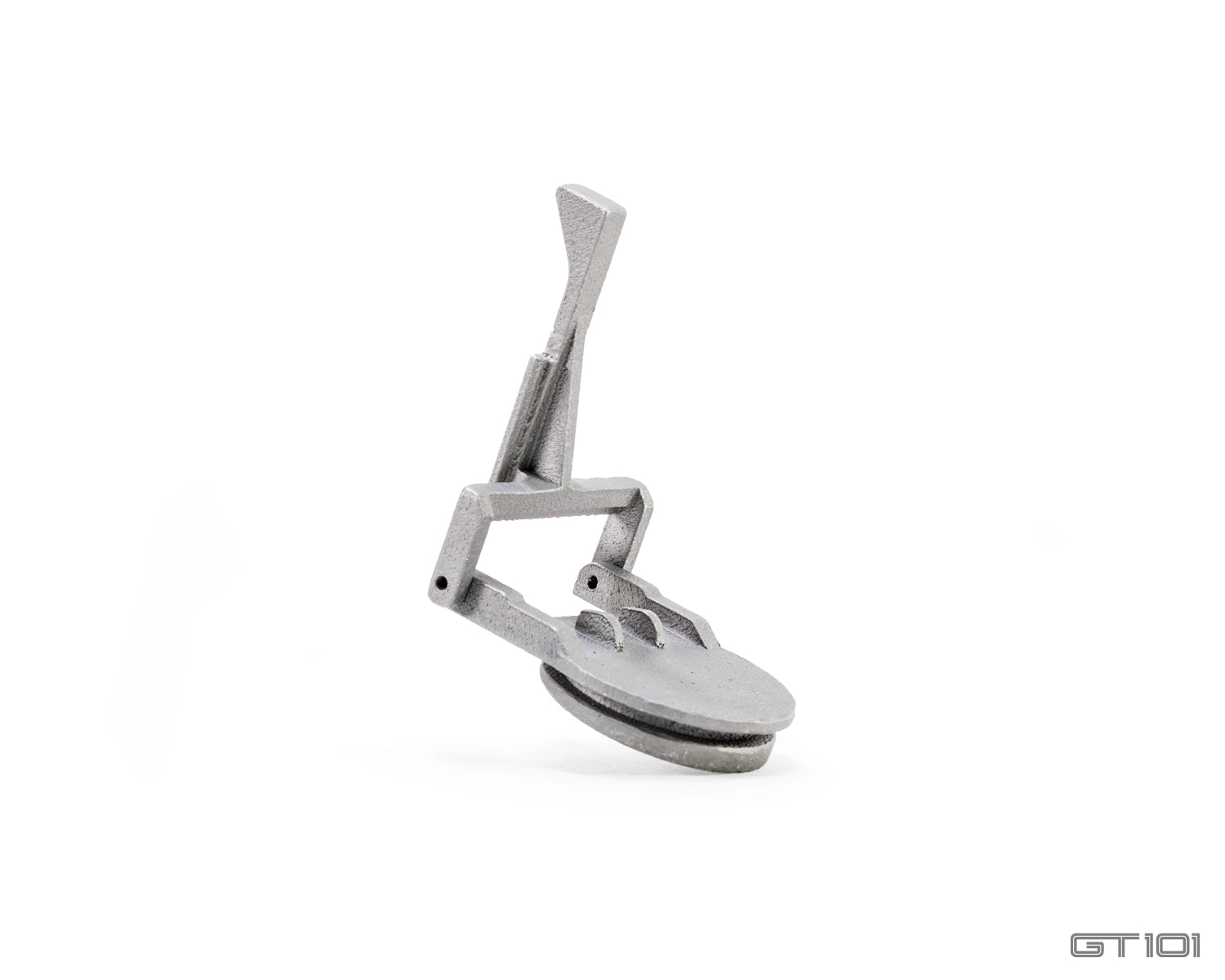

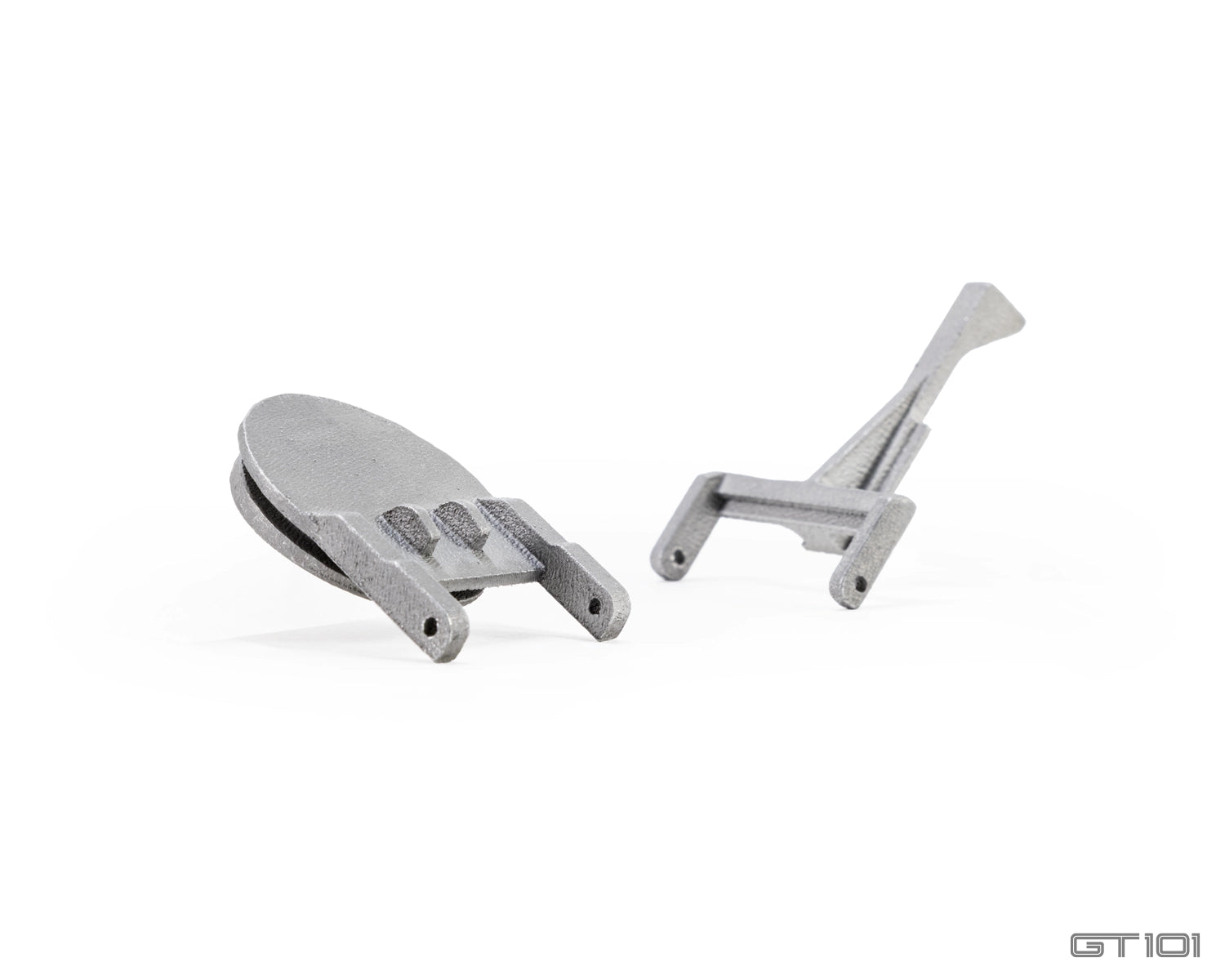

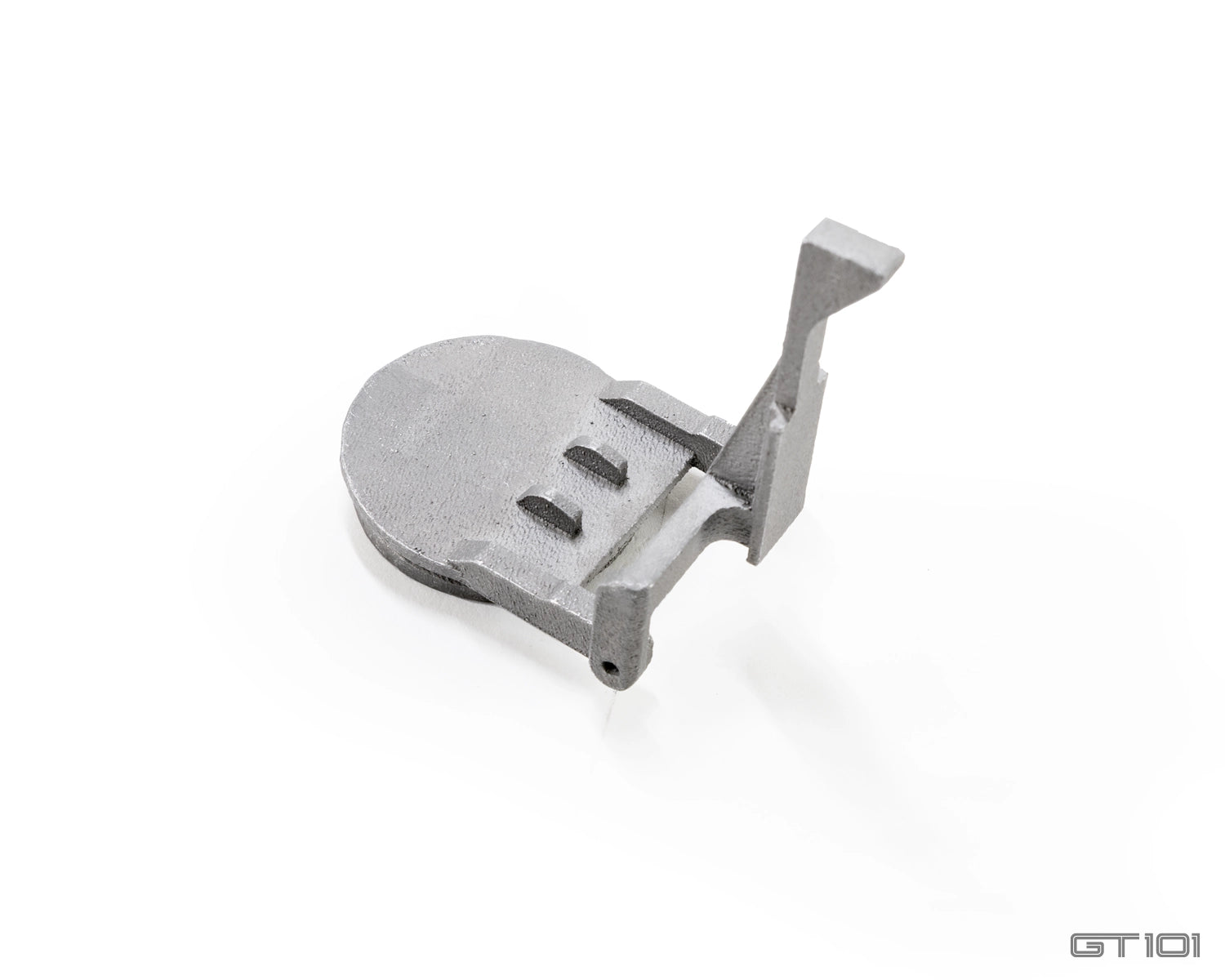

• Supplied as a two-piece repair kit comprising the replacement aluminium fuel filler flap and supporting bracket.

Fitment & Compatibility

Vehicle: Ford GT (2005–2006 Model Years)
Location: Fuel filler neck assembly
Material: 3D printed aluminium
Quantity: One replacement fuel filler flap and one supporting bracket

Installation & Important Information

Please note: Installation of this repair kit is a relatively involved procedure and requires removal of the complete fuel filler neck assembly from the vehicle. We recommend that installation is undertaken by an experienced technician or specialist familiar with the Ford GT.

Once the filler neck assembly has been removed, the original plastic upper section must be carefully separated from the metal filler neck. This section is secured using metal retaining tabs and can be difficult to remove.

The internal mechanism must then be disassembled, allowing the original plastic flap and bracket to be replaced with the new aluminium components.

The original rubber seal, spring and pivot pin must be retained and reused. These components are not included in the repair kit. If any of these original parts are missing, damaged or unserviceable, this kit alone will not provide a complete repair.

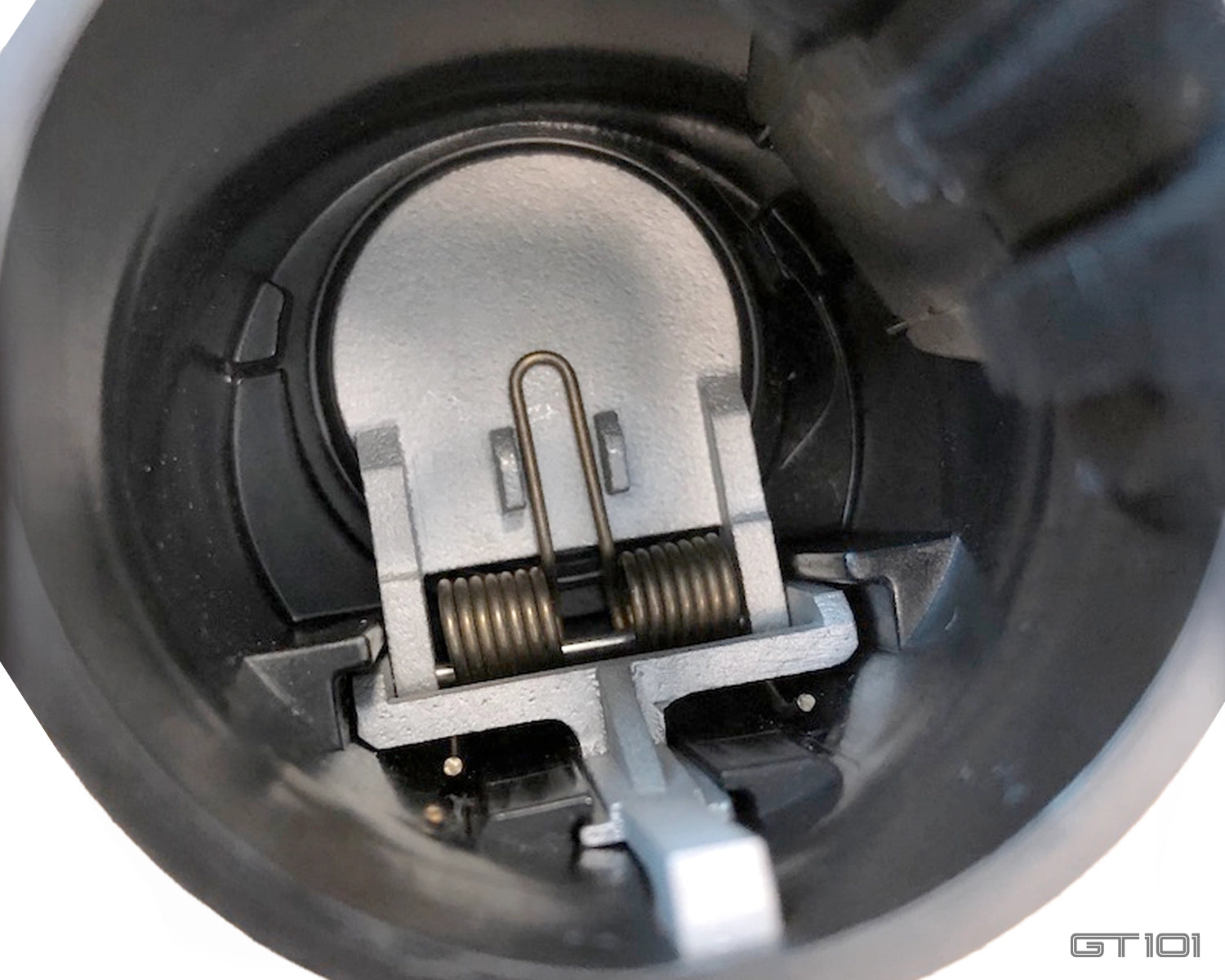

Once the replacement aluminium components have been installed and the original hardware refitted, the upper mechanism can be reassembled and secured back onto the metal filler neck assembly.

If you are unsure whether this repair kit is suitable for your vehicle, or require further guidance before ordering, please contact GT101 and our team will be happy to advise.
